Image of "test-bed" - link

For this second test, several routers are running at the same time.

Routers

• Asus  wl500gP v1 with two external antennas
• Asus  wl500gP v1 with Windsurfer
• Asus  wl500gP v1 standard - to come later
• Fon2100
• Fon2100 with LaFontenna
• Fon2100 with two antennas - to come later
• Netgear CSV826G Cable Modem router with WiFi
• Linksys wrt54g v2.2 - maybe to come later - if I can unbrick the router

Individual Netstumbler graphs

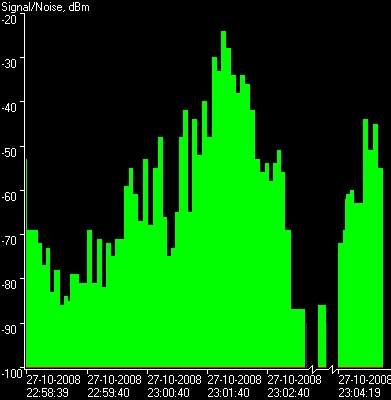

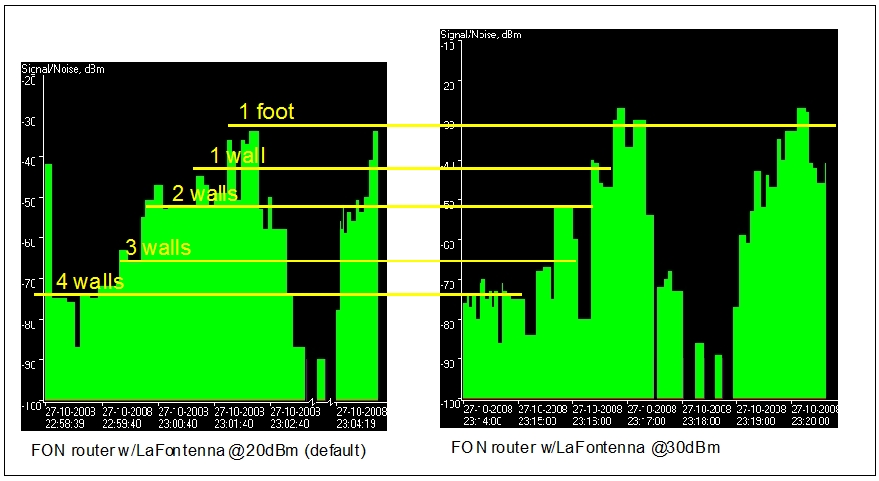

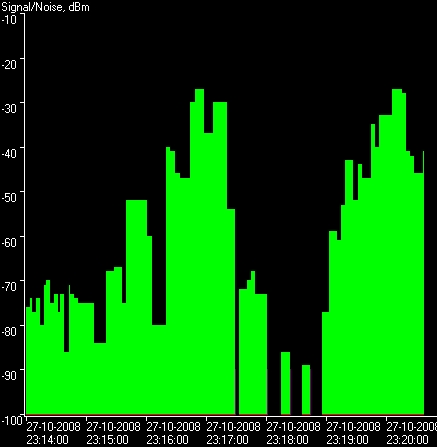

FON + LaFontenna @ 20dBm	FON + LaFontenna @ 30dBm

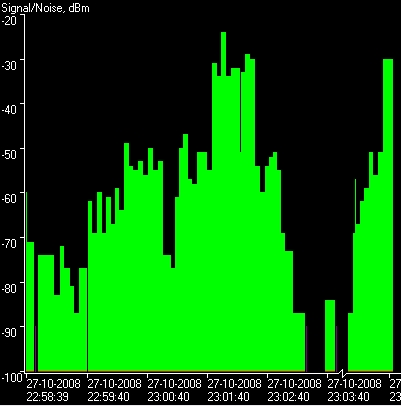

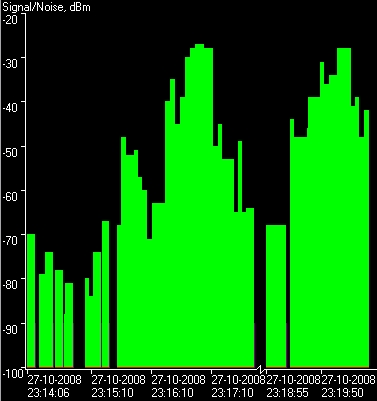

FON @ 20dBm	Data is all wrong for this test FON @ 30dBm

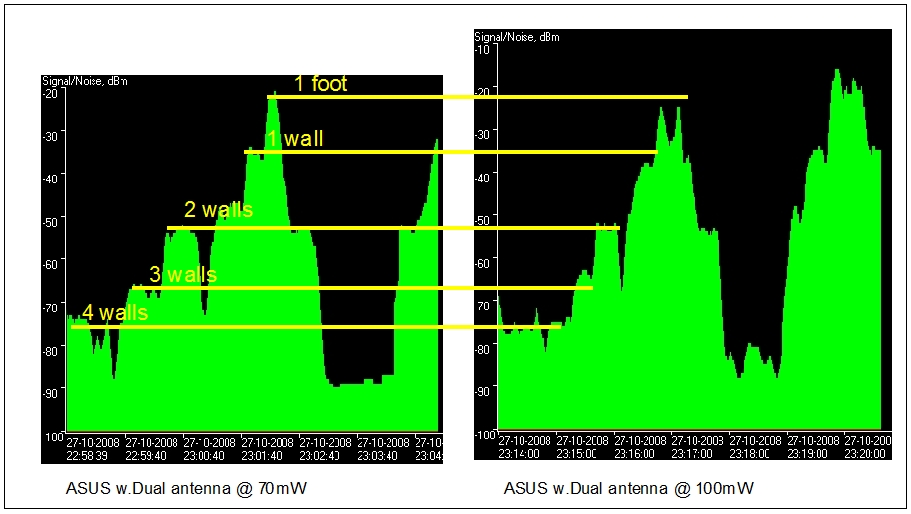

ASUS - dual antenna @ 70mW	ASUS - dual antenna @ 100mW

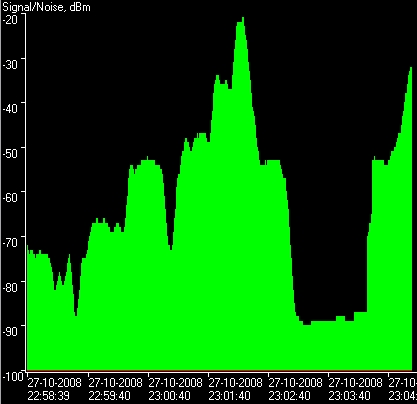

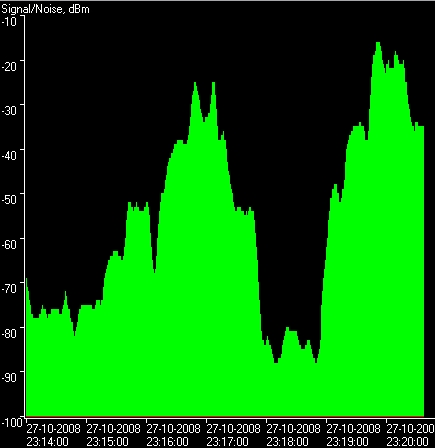

ASUS w.Windsurfer @ 70mW	ASUS w.Windsurfer @ 100mW

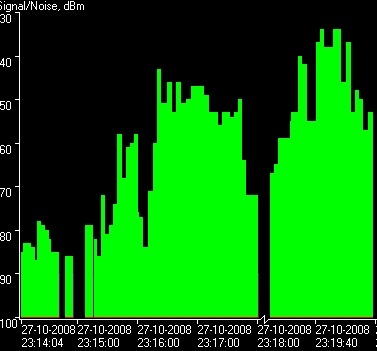

Netgear Cable Modem w.WiFi	Fon+ router
